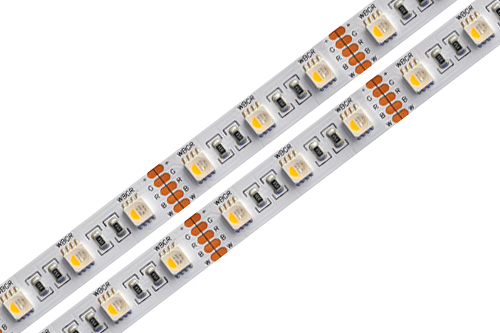

LED TYPE : 5050 RGBW
Voltage
1100Lm/M
Quantity
60 LED/M
AVAILABLE LED COLOURS
RGBW
Width
12mm
Length
5m
CUT-ABLE POINTS
3 LEDs for 12V, 6 LEDs for 24V
Wattage
14.4W/m
Voltage
12/24 VDC
LED Type
5050 RGBW 4 in 1
Quantity
60 LED/M
Color
RGB+WW2700K/RGB-W6500K
Water Proof
IP20/IP65
Warranty
2 Years
CE/ RoHS
Yes
STRIP STRUCTURE
INSTALLATION GUIDE
Dry the position to be flat and smooth before putting on the strip
LED tape can be cut only between soldering pads
Solder wires on soldering pads (label +/-). The solder temperature may not exceed 350 for maximum duration of 2 seconds.
You can also connect strips using LED tape connectors.connectors.
LED tapes are bendable. Minimum bend radius is 30 mm
LED tapes must be installed on aluminum (or material with similar thermal conduction) to avoid LEDs overheating and ensure proper heat dissipation. Measure TC temperature after 30 minutes of operation. TC temperature should not exceed 75.

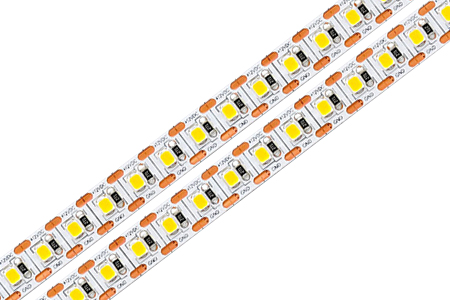

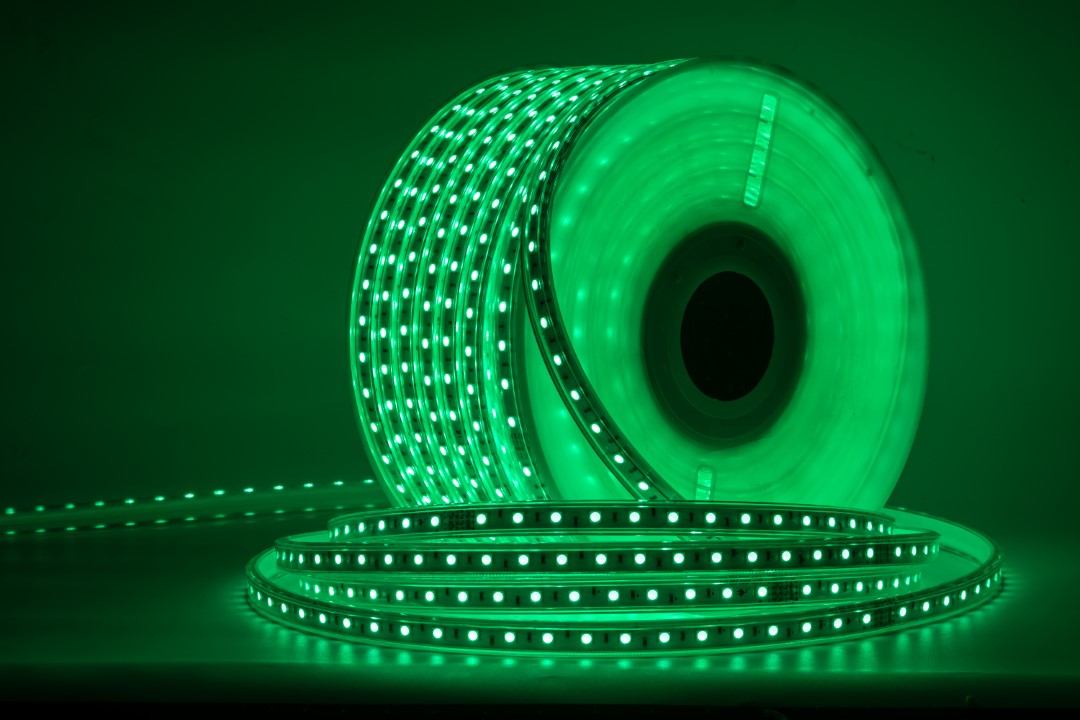

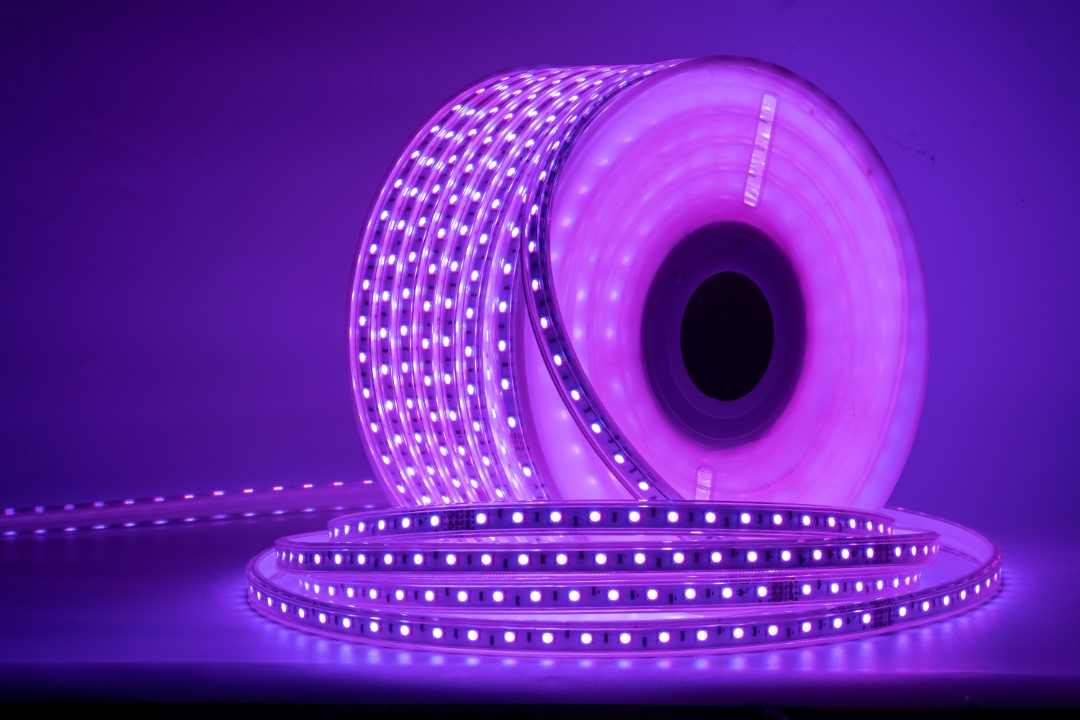

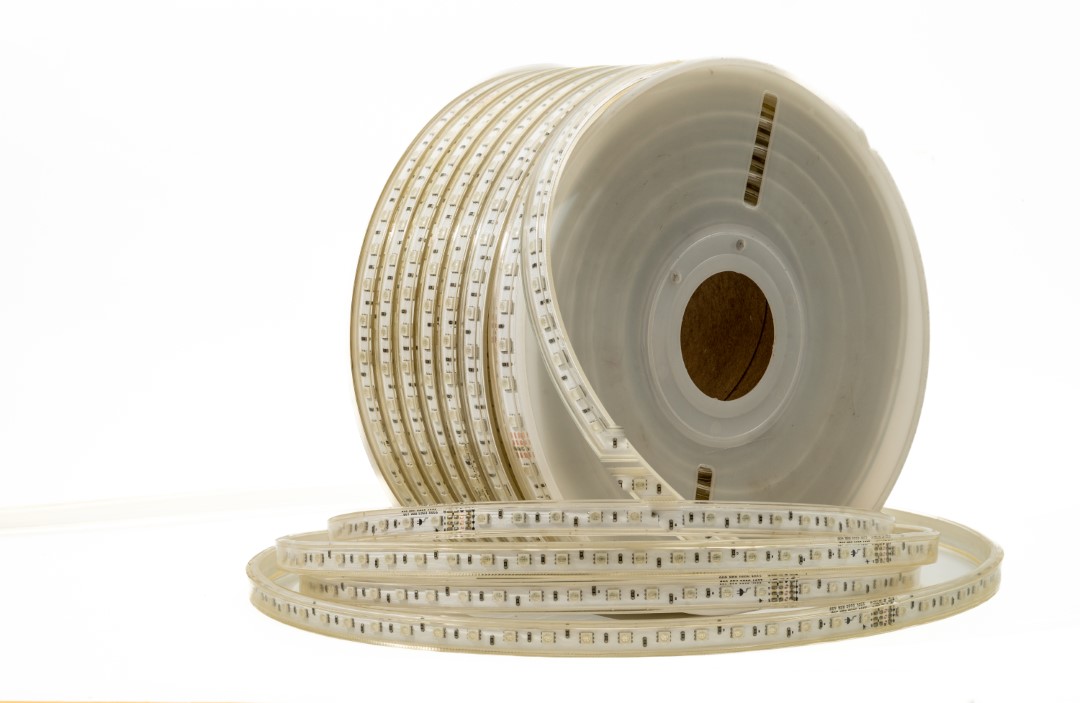

RELATED PRODUCTS
