LED TYPE : 2835 CCT
Voltage
12V, 24VDC
Efficiency
99.0Lm/W
AVAILABLE LED COLOURS

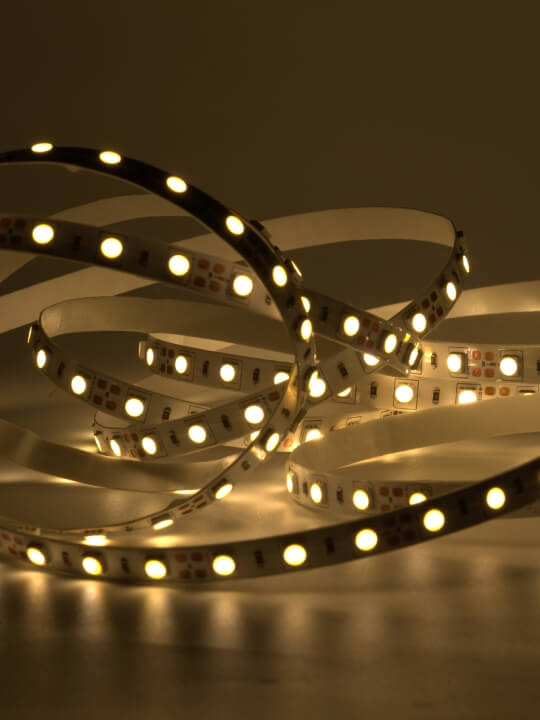

WARM WHITE

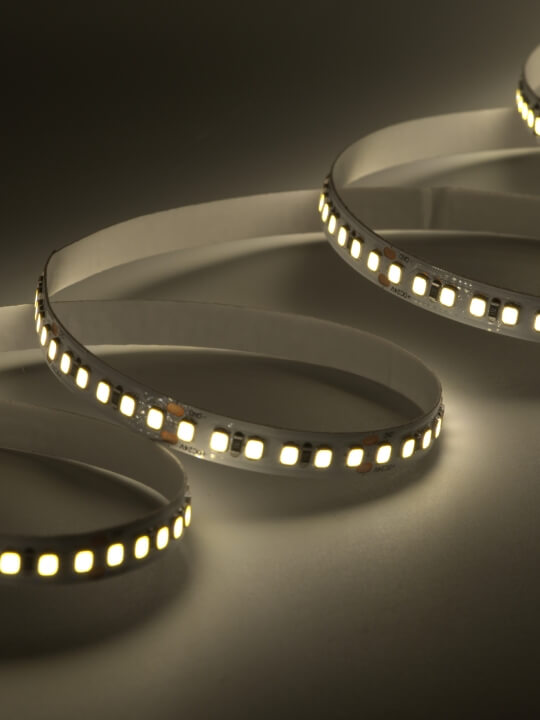

Neutral White

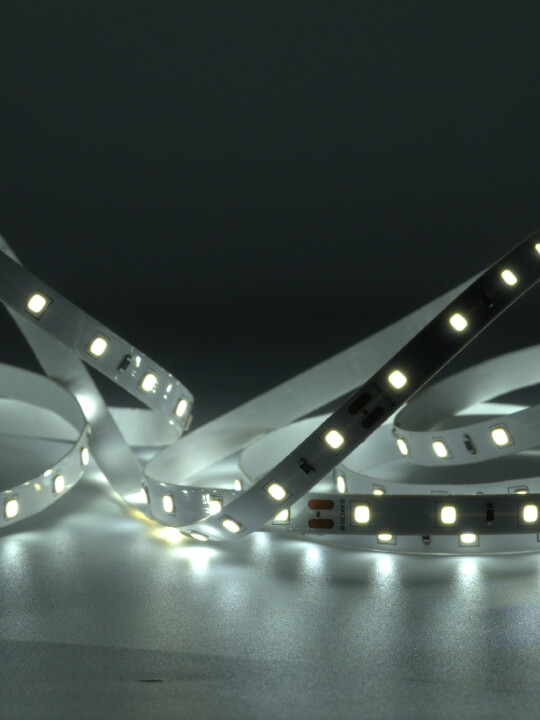

Cold White
Width
8mm & 10mm, 2 or 3oz
Efficiency
99.0Lm/W
CRI
80+
Watts/M
21W
CUT-ABLE POINTS
6 LEDs for 12V, 12 LEDs for 24V
Voltage
12V, 24VDC
Warm White
1051.2Lm/M; 2800-3200K
Cold White
1048.6Lm/M; 6500-7000K
Neutral White
2020.2Lm/M; 4000-4500K
STRIP STRUCTURE
INSTALLATION GUIDE
Dry the position to be flat and smooth before putting on the strip
LED tape can be cut only between soldering pads
Solder wires on soldering pads (label +/-). The solder temperature may not exceed 350 for maximum duration of 2 seconds.
You can also connect strips using LED tape connectors.connectors.
LED tapes are bendable. Minimum bend radius is 30 mm
LED tapes must be installed on aluminum (or material with similar thermal conduction) to avoid LEDs overheating and ensure proper heat dissipation. Measure TC temperature after 30 minutes of operation. TC temperature should not exceed 75.

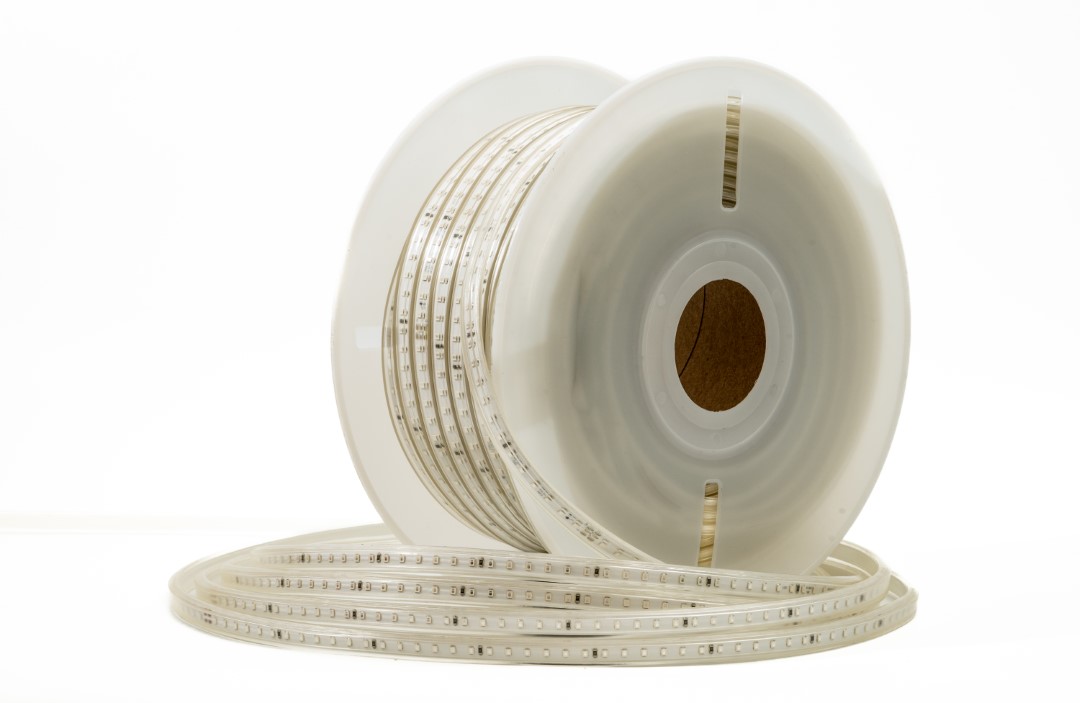

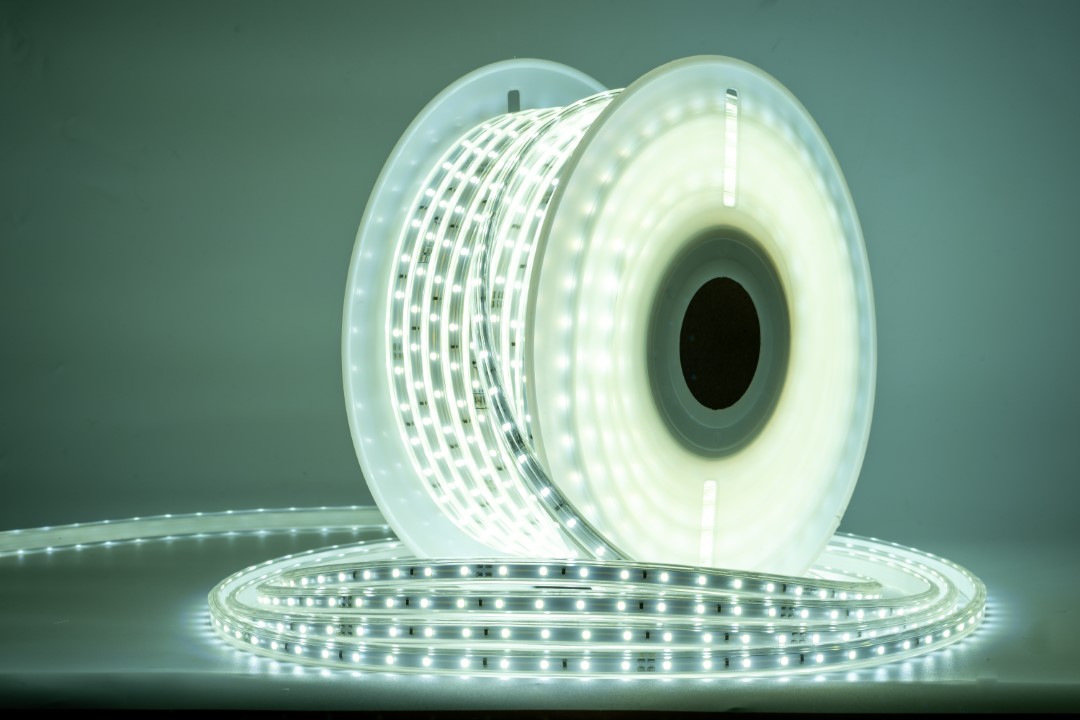

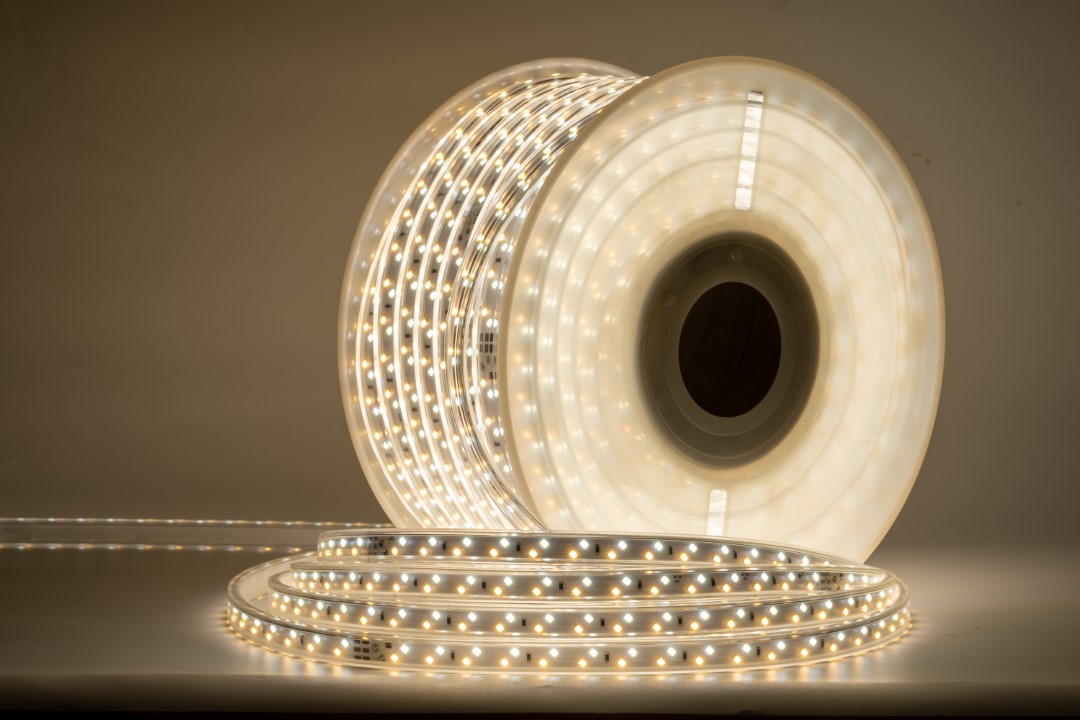

RELATED PRODUCTS
